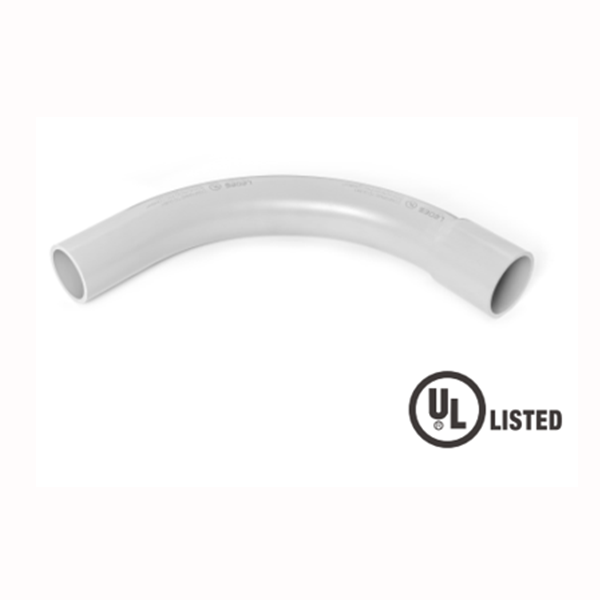

Sch40 & Sch80 90° Special Sweep Elbows- Bell End

Sch40 & Sch80 90° Special Sweep Elbows- Bell End

$0.00

Product Properties

  • Bell end standard radius elbow is used to change the direction of a conduit run by 90 degrees.
  • PVC material provides excellent corrosion resistance.
  • Resistant to sunlight (UV resistant).
  • Complies with UL651 standards.
  • Designed for standard radius.

Available in store

Choose Quantity
Category:
Item No. Trade Size Min.Wall (in) A (in) B (in) Radius
Sch40 Sch80 24″ 36″
CI-SWS90C 1 0.133 0.179 1.315 1.875 ✓ ✓
CI-SWS90D 1-1/4 0.140 0.191 1.660 2.000 ✓ ✓
CI-SWS90E 1-1/2 0.145 0.200 1.900 2.000 ✓ ✓
CI-SWS90F 2 0.154 0.218 2.375 2.000 ✓ ✓
CI-SWS90G 2-1/2 0.203 0.276 2.875 3.000 ✓ ✓
CI-SWS90H 3 0.216 0.300 3.500 3.125 ✓ ✓
CI-SWS90I 3-1/2 0.226 0.318 4.000 3.250 ✓ ✓
CI-SWS90J 4 0.237 0.337 4.500 3.375 ✓ ✓
CI-SWS90K 5 0.258 0.375 5.563 3.625 ✓
CI-SWS90L 6 0.280 0.432 6.625 3.750 ✓
CI-SWS90M 8 0.322 0.500 8.625 6.500 ✓
