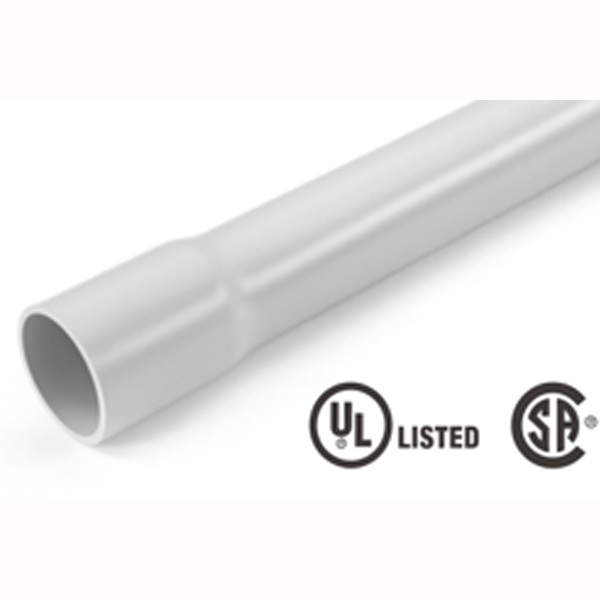

Schedule 40 Rigid PVC Conduit
Schedule 40 Rigid PVC Conduit - Image 2

Schedule 40 Rigid PVC Conduit

$0.00

Capitola Industrial Schedule 40 Rigid PVC Conduit is designed for commercial and industrial electrical installations requiring durable, corrosion-resistant raceway systems.
Manufactured to meet UL 651 and NEMA TC-2 standards, Schedule 40 conduit provides reliable performance for above-ground and underground applications.

Product Properties

  • PVC material tested in accordance with ASTM D1784-20.
  • Complies with UL 651 standards.
  • Complies with CSA C22.2 No. 211.2 standards.
  • Complies with NEMA TC-2 requirements.
  • PVC material provides excellent corrosion resistance.
  • High impact resistance.
  • Resistant to sunlight (UV resistant).
  • Self-extinguishing and fire-retardant.
  • Smooth interior and exterior surfaces.
  • Suitable for both underground and above-ground  applications.
  • Standard lengths available in 10 ft and 20 ft, with or without belled ends. Custom lengths are available for specific applications.
  • FT4 rated.

Applications

  • Commercial construction
  • Industrial facilities
  • Utility installations
  • Infrastructure projects
  • Underground and above-ground raceways

Request Quote

Available in store

Choose Quantity
Category: Tag:

Available Sizes

Trade sizes available from ½” through 8” (availability varies by configuration).
For complete size charts and dimensional data, contact Capitola Industrial.

Item No. Size OD Average Min Average ID Min T
Inches mm Schedule 40 Inches mm Schedule 40 Inches mm
CI-SCH40A 1/2 0.840 ± 0.004 21.34 ± 0.10 0.578 14.68 0.109 2.77
CI-SCH40B 3/4 1.050 ± 0.004 26.67 ± 0.10 0.780 19.81 0.113 2.87
CI-SCH40C 1 1.315 ± 0.005 33.40 ± 0.13 1.004 25.50 0.133 3.38
CI-SCH40D 1-1/4 1.660 ± 0.005 42.16 ± 0.13 1.335 33.90 0.140 3.56
CI-SCH40E 1-1/2 1.900 ± 0.006 48.26 ± 0.15 1.564 39.72 0.145 3.68
CI-SCH40F 2 2.375 ± 0.006 60.32 ± 0.15 2.021 51.33 0.154 3.91
CI-SCH40G 2-1/2 2.875 ± 0.007 73.02 ± 0.18 2.414 61.31 0.203 5.16
CI-SCH40H 3 3.500 ± 0.008 88.90 ± 0.20 3.008 76.40 0.216 5.49
CI-SCH40I 3-1/2 4.000 ± 0.008 101.60 ± 0.20 3.486 88.54 0.226 5.74
CI-SCH40J 4 4.500 ± 0.009 114.30 ± 0.23 3.961 100.60 0.237 6.02
CI-SCH40K 5 5.563 ± 0.010 141.30 ± 0.25 4.975 126.36 0.258 6.55
CI-SCH40L 6 6.625 ± 0.011 168.28 ± 0.28 5.986 152.04 0.280 7.11
CI-SCH40M 8 8.625 ± 0.011 219.07 ± 0.28 7.853 199.47 0.322 8.18
