Name: Schedule 80 Rigid PVC Conduit
SKU: 4651
Availability: InStock

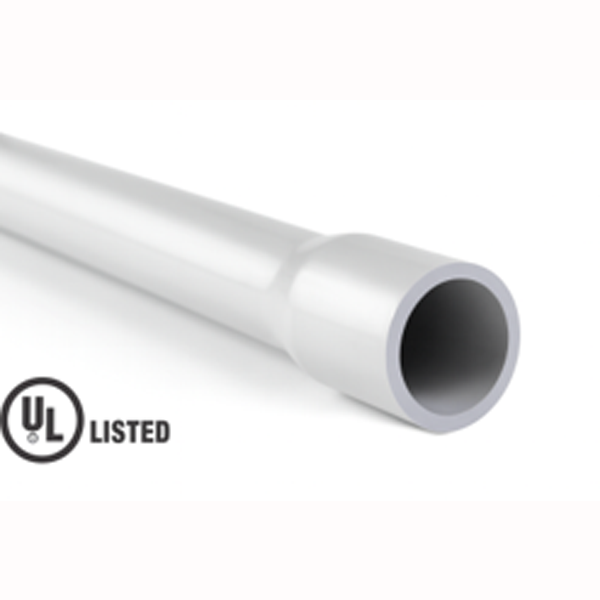

Schedule 80 Rigid PVC Conduit

$0.00

Capitola Industrial provides Schedule 40 and Schedule 80 rigid PVC conduit designed for commercial and industrial electrical installations.

Manufactured to meet UL 651 and NEMA TC-2 standards, our conduit systems deliver corrosion resistance, impact durability, and long-term performance in above-ground and underground applications.

Product Properties

PVC material tested in accordance with ASTM D1784-20.
Complies with UL 651 standards.
Complies with NEMA TC-2 requirements.
PVC material provides excellent corrosion resistance.
High impact resistance.
Self-extinguishing and fire-retardant.
Smooth interior and exterior surfaces.
Suitable for both underground and above-ground applications.

Standard lengths available in 10 ft and 20 ft, with or without belled ends. Custom lengths are available for specific applications.

FT4 rated.

Available in store

Available Sizes

Trade sizes available from ½” through 8” (availability varies by configuration).
For complete size charts and dimensional data, contact Capitola Industrial.

Item No.	Size	OD		Min Average ID		Min T
		Average		Schedule 80		Schedule 80
		Inches	mm	Inches	mm	Inches	mm
CI-SCH80A	1/2	0.840±0.004	21.34±0.10	0.502	12.75	0.147	3.73
CI-SCH80B	3/4	1.050±0.004	26.67±0.10	0.698	17.72	0.154	3.91
CI-SCH80C	1	1.315±0.005	33.40±0.13	0.910	23.11	0.179	4.55
CI-SCH80D	1-1/4	1.660±0.005	42.16±0.13	1.227	31.16	0.191	4.85
CI-SCH80E	1-1/2	1.900±0.006	48.26±0.15	1.446	36.72	0.200	5.08
CI-SCH80F	2	2.375±0.006	60.32±0.15	1.881	47.77	0.218	5.54
CI-SCH80G	2-1/2	2.875±0.007	73.02±0.18	2.250	57.15	0.276	7.01
CI-SCH80H	3	3.500±0.008	88.90±0.20	2.820	71.62	0.300	7.62
CI-SCH80I	3-1/2	4.000±0.008	101.60±0.20	3.280	83.31	0.318	8.08
CI-SCH80J	4	4.500±0.009	114.30±0.23	3.737	94.91	0.337	8.56
CI-SCH80K	5	5.563±0.010	141.30±0.25	4.713	119.71	0.375	9.53
CI-SCH80L	6	6.625±0.011	168.28±0.28	5.646	143.41	0.432	10.97
CI-SCH80M	8	8.625±0.011	219.07±0.28	7.513	190.83	0.500	12.70
